Technical data
Power Supply:Three-phase 380V 50Hz
Working mode: S1
Protectio grade: IP68
Insulation class:Class F (Class H is optional)
Temperature range [°C]:≤40ºC
Environment temperature:0-40ºC
Density: Less than 1.05×103kg/m3
PH value:5-9

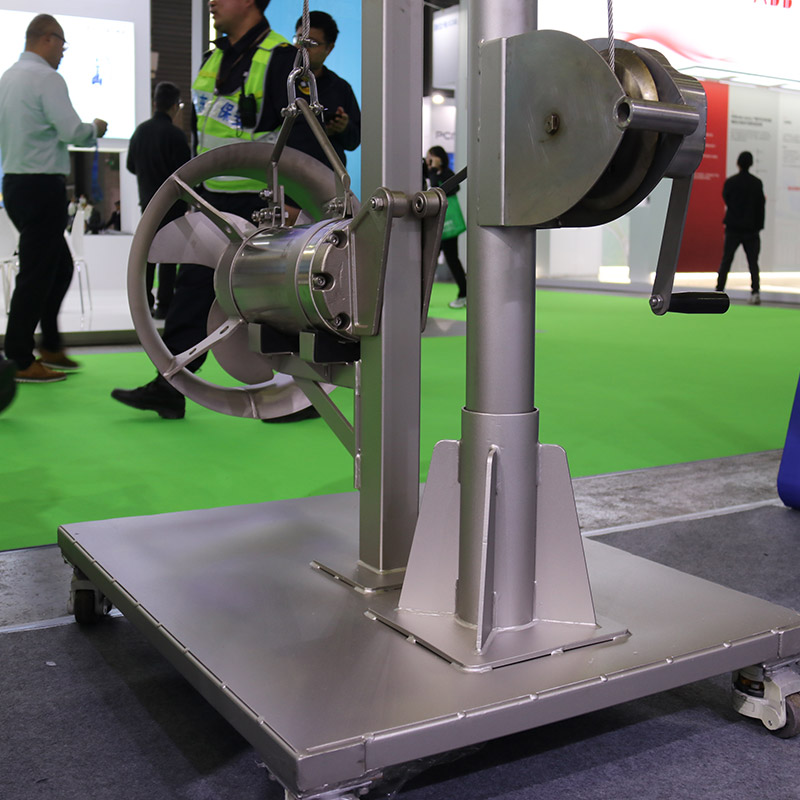

Installation mode:Submersible horizontal installation
Maximum submergence depth: 20m
Product application
The mixer suitable for diving installation is mainly used for mixing, mixing and circulation in the process of municipal engineering and industrial sewage treatment. It can also be used for the maintenance of landscape water environment. It can create water flow through mixing, so as to improve the water quality, increase the oxygen content in the water and effectively prevent the sedimentation of suspended solids.

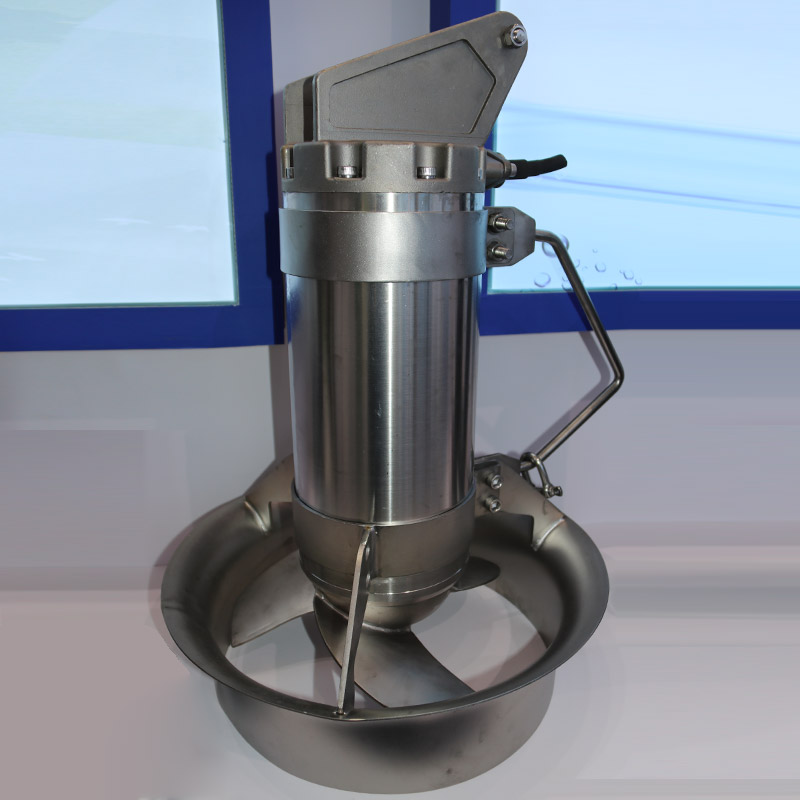

SM320.960-M6/4D
POLYVANE
| Quantity: | |
|---|---|
Product Description
Product Description
Technical data
Power Supply:Three-phase 380V 50Hz
Working mode: S1
Protectio grade: IP68
Insulation class:Class F (Class H is optional)
Temperature range [°C]:≤40ºC
Environment temperature:0-40ºC
Density: Less than 1.05×103kg/m3
PH value:5-9
Installation mode:Submersible horizontal installation
Maximum submergence depth: 20m
Product application
The mixer suitable for diving installation is mainly used for mixing, mixing and circulation in the process of municipal engineering and industrial sewage treatment. It can also be used for the maintenance of landscape water environment. It can create water flow through mixing, so as to improve the water quality, increase the oxygen content in the water and effectively prevent the sedimentation of suspended solids.
Product Parameters
| Mixer model | Impeller dia (mm) | Speed (r/min) | Motor power (kW) | Rated current (A) | Thrust (N) | Weight (kg) |
| SM220.960-M6/0.37D | 220 | 960 | 0.37 | 1.3 | 135 | 29/32 |
| SM220.1440-M4/0.55D | 220 | 1440 | 0.55 | 1.6 | 145 | 29/32 |
| SM260.740 -M8/0.85D | 260 | 740 | 0.85 | 2.9 | 165 | 40/44 |
| SM260.960-M6/1.5D | 260 | 960 | 1.5 | 3.9 | 290 | 40/44 |
| SM320.740-M8/2.2D | 320 | 740 | 2.2 | 5.8 | 580 | 66/72 |
| SM320.960-M6/4D | 320 | 960 | 4 | 9.8 | 610 | 74/80 |
| SM400.740-M8/1.5D | 400 | 740 | 1.5 | 4.5 | 600 | 62/70 |
| SM400.740-M8/2.2D | 400 | 740 | 2.2 | 5.9 | 800 | 68/74 |
| SM400.740-M8/3D | 400 | 740 | 3 | 7.9 | 920 | 70/78 |
| SM400.960-M6/4D | 400 | 960 | 4 | 9.8 | 1010 | 70/78 |
| SM620.480-M12/4D | 620 | 480 | 4 | 14.2 | 1400 | 166/184 |
| SM620.480-M12/5D | 620 | 480 | 5 | 18 | 1800 | 174/192 |
| SM620.480-M12/7.5D | 620 | 480 | 7.5 | 28 | 2600 | 220/238 |
| SM620.480-M12/10D | 620 | 480 | 10 | 32 | 3300 | 224/242 |
| SM650.480-M12/15D | 650 | 480 | 15 | 38 | 4200 | 265/285 |
| SM720.360-M16/22D | 720 | 360 | 22 | 53 | 5500 | 325/350 |
Product features
High quality imported fully enclosed self-lubricating bearing with long service life.
The special cable manufacturing process can completely prevent the water from entering the motor through the small gap between each phase line and line when the cable skin is damaged or the front end of the cable invades the water, resulting in the damage of the motor. Two independent mechanical seals ensure long-term reliable operation of submersible motor.

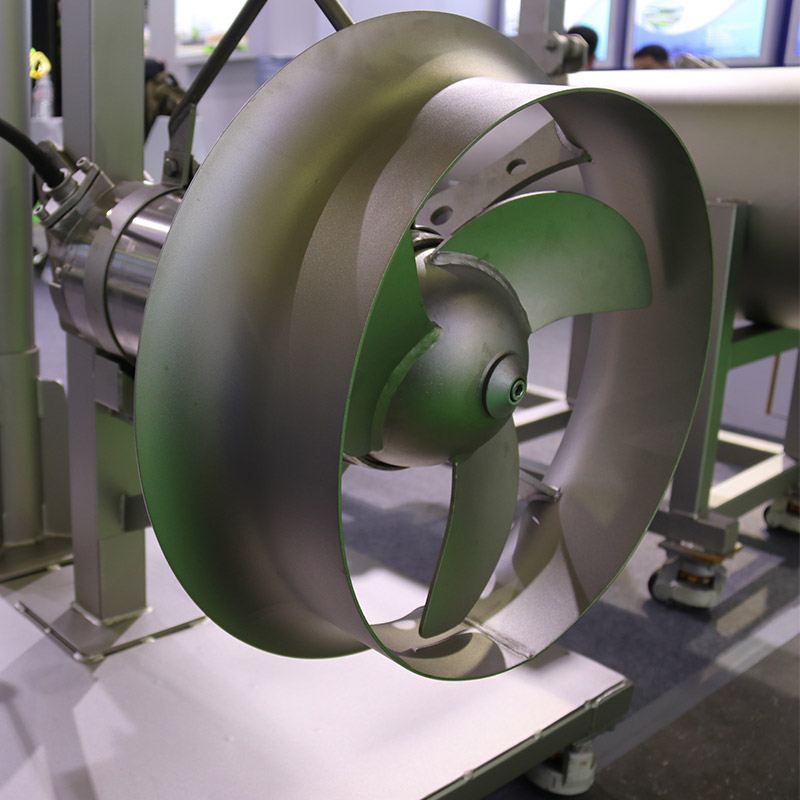

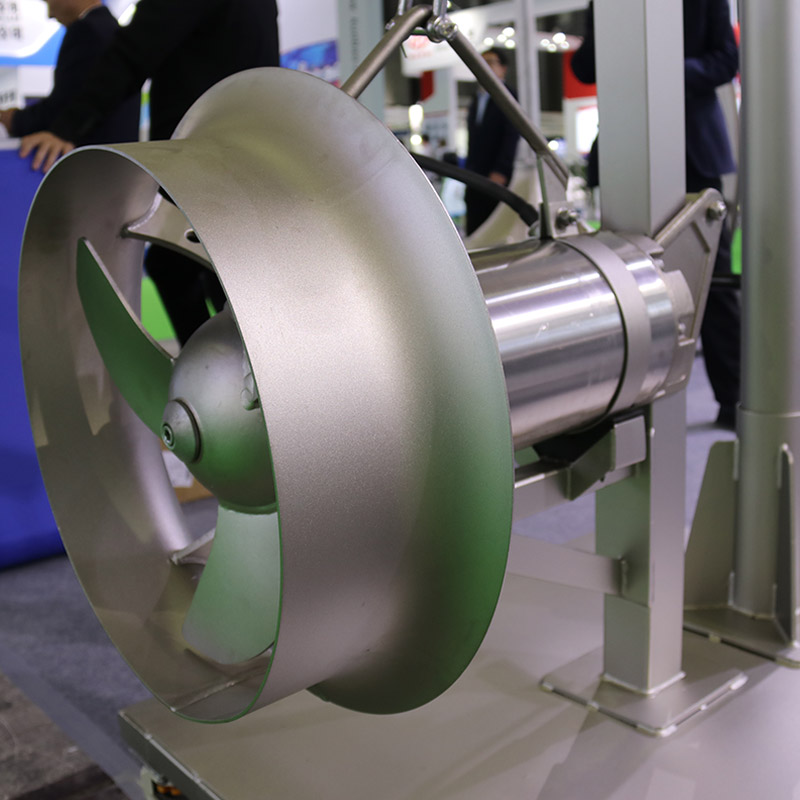

The impeller is welded by precision casting hub and stamping blade. The blade optimized by CFD software is swept back, with high efficiency and self-cleaning function.
Adopt mechanical seal, no water leakage and long service life.
The mixer is equipped with leakage sensor and stator winding overtemperature detection device (PTC).
